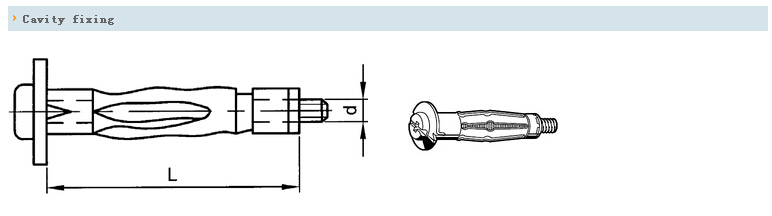

膨胀螺栓 Cavity fixing 腔壁固定螺栓

Type

d

L

Screw size

Drill ø

Drill depth (min.)

Material thickness(max.)

Structural part thickness (max.)

HM 4x32

M4

32

-

8

42

3-13

16

HM 4x32 S

M4

32

M4X40

8

42

3-13

16

HM 4x46 S

M4

46

M4X2

8

56

5-18

23

HM 4x59 S

M4

59

M4X66

8

69

35-42

16

HM 5x37 S

M5

37

M5X45

11

47

6-15

19

HM 5x52 S

M5

52

M5X60

11

62

7-21

24

HM 5x65 S

M5

65

M5X73

11

75

20-34

24

HM 6x37

M6

37

-

13

47

6-15

14

HM 6x37 S

M6

50

M6X60

13

62

10-21

24

HM 6x52 S

M6

52

M6X60

13

62

10-21

24

HM 6x65 S

M6

65

M6X70

13

75

20-34

24

HM 6x80

M6

80

-

13

90

38-50

24

HM 6x80 S

M6

80

M6X88

13

90

38-50

24

HM 8x55 SS

M8

55

M8X60

13

65

10-21

24

Thread

Material

Surface treatment

Brand

Packaging

M

St

Zipl

FISCHER

Standard
